(In Stock) 100w Phoenix Fury With Custom Bonvillain Baffle & Matching 2×12
January 21, 2025D-Style Chassis
$99.00 – $298.00
This chassis is setup to accommodate a 70’s, #102, #124, #183, or Bluesmaster without drilling. The chassis are well executed with appropriate masking for all grounds, countersunk screw holes, and mounting PEM nuts on the flanges ready to be mounted.
Build either a 50w or 100w amp with our “dual mount” PT hole that fits standard Fender Twin or Bassman iron. If you want to build a 22w, we offer a reducing bracket for $25. The chassis has a ton of output options for mounting Heyboer, Hammond, Mojotone, Mercury Magnetics, etc output transformers…basically everything we could find, we punched holes for it.
Stainless steel mounting hardware is included.
ODS Eyelet Boards
We also have full ODS matching eyelet boards sets
The set has preamp board, power amp board, rectifier board, relay supply board, FET board, and PCB relays’ The set includes backer boards so you can mount safely to the chassis sidewall. These boards match up perfectly with our chassis and are CNC machined in Hudson MA and layout information is available.

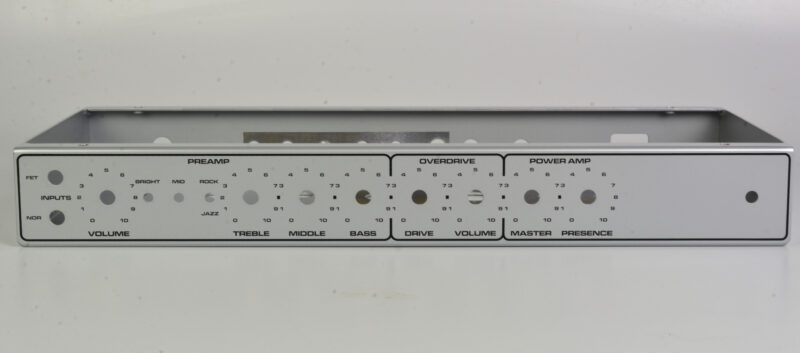

D-Style Chassis
$99.00 – $298.00
-
.080″ 5032 Aluminum, fully machined
Masked/Powdercoated/Silk Screened
3 noval, 4 octals
This chassis is setup to accommodate a 70’s, #102, #124, #183, or Bluesmaster without drilling. The chassis are well executed with appropriate masking for all grounds, countersunk screw holes, and mounting PEM nuts on the flanges ready to be mounted.
Build either a 50w or 100w amp with our “dual mount” PT hole that fits standard Fender Twin or Bassman iron. If you want to build a 22w, we offer a reducing bracket for $25. The chassis has a ton of output options for mounting Heyboer, Hammond, Mojotone, Mercury Magnetics, etc output transformers…basically everything we could find, we punched holes for it.
Stainless steel mounting hardware is included.
ODS Eyelet Boards
We also have full ODS matching eyelet boards sets
The set has preamp board, power amp board, rectifier board, relay supply board, FET board, and PCB relays’ The set includes backer boards so you can mount safely to the chassis sidewall. These boards match up perfectly with our chassis and are CNC machined in Hudson MA and layout information is available.
